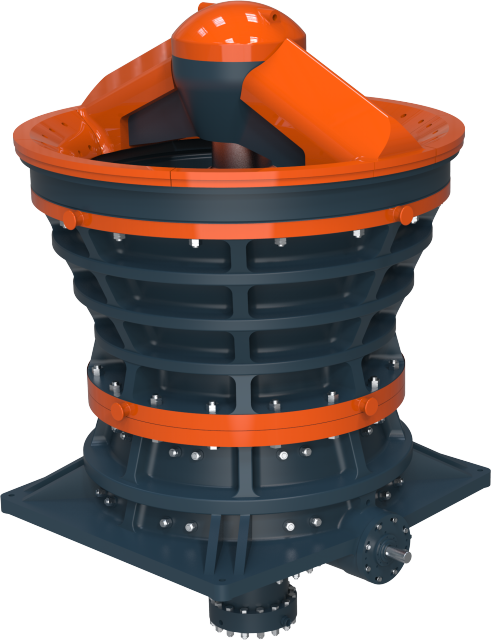

The GC series gyratory crusher is a high-performance primary crushing equipment, specially designed for industries such as mining, metallurgy, construction, and water conservancy and hydropower, for efficient crushing of various ores and rocks.
Applicable Materials(Hard and medium-hard rocks):
basalt, granite, marble, gneiss, quartzite, sandstone, limestone, iron ore, copper ore, molybdenum ore, etc.
Technical Parameters:
Capacity: 5,000-17,000 t/h
Feed Size: 1,000-1,500 mm
Power: 450-1,500 kW
| Main characteristics | ||||
| Model | Weight (mtons) | Feed opening (mm) | Power (kW) | Maximum capacity(mtph) |
| GC 42-65 | 120 | 1066 | 450 | 5250 |
| GC 50-65 | 153 | 1270 | 450 | 6375 |
| GC 54-75 | 242 | 1370 | 600 | 7500 |
| GC 62-75 | 298 | 1575 | 600 | 8750 |
| GC 60-89 | 365 | 1525 | 750 | 12500 |
| GC 70-89 | 430 | 1780 | 900 | 15000 |
| GC 60-110 | 553 | 1525 | 1500 | 17000 |
| Capacity (mtph) : Typical feed curve, SG=2.75 t/m³, maximum eccentricity | ||||||||||||
| OSS (mm) | 152 (6 in) 1 |
177 (7in) | 203 (8 in) | 230 (9 in) | 254 (10 in) | 305 (12 in) | ||||||
| Min | Max | Min | Max | Min | Max | Min | Max | Min | Max | Min | MaxB | |
| GC 42-65 | 2354 | 3362 | 2893 | 4133 | ||||||||
| GC 50-65 | 2414 | 3449 | 2958 | 4226 | ||||||||
| GC 54-75 | 2908 | 4154 | 3170 | 4529 | 3513 | 5018 | ||||||
| GC 62-75 | 2913 | 4162 | 3846 | 5494 | 4365 | 6235 | ||||||
| GC 60-89 | 4576 | 6538 | 5337 | 7625 | 5851 | 8359 | ||||||
| GC 70-89 | 5051 | 7215 | 6076 | 8681 | 7033 | 10047 | ||||||
| GC 60-110 | 5579 | 7970 | 7394 | 10562 | 8346 | 11923 | 8961 | 12802 | 9857 | 14082 | ||
