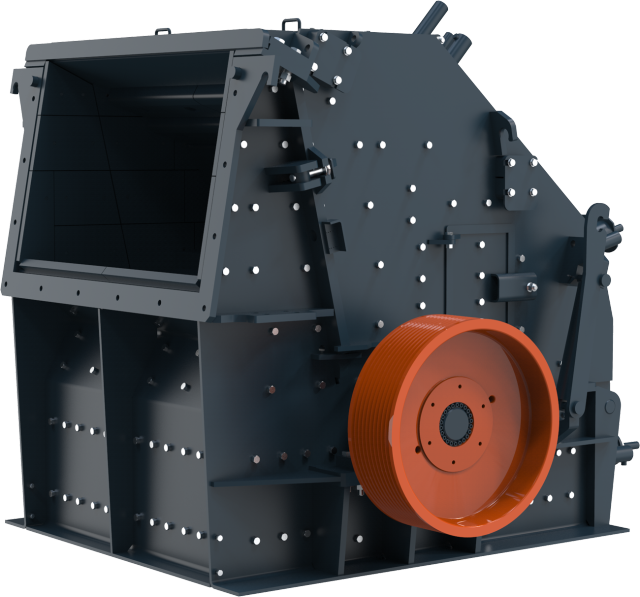

PN Series impact crushers have a unique blow-bar attachment system that provides a higher degree of reliability. PN Series impact crushers are designed to minimize mainte nance, to improve adjustment operations and to deliver unbeatable performance in primary, secondary, tertiary and recycling applications.
| PN Model | Feed opening | Maximum feed size | Nominal installed power | Maximum installed power | |
| Primary range |
PN1313 | 1 320 x 1 225 mm (52" x 48 1/4") | 900 mm (35") | 200 kW / 250 hp | 250 kW / 350 hp |
| PN1415 | 1 540 x 1 320 mm (60 5/8" x 52") | 1 000 mm (40") | 250 kW / 350 hp | 315 kW / 400 hp | |
| PN1620 | 2 040 x 1 634 mm (80 1/4" x 64 1/4") | 1 300 mm (51") |
400 kW (2x200 kW) / 500 HP (2x250 hp) |
500 kW (2x250 kW) / 700 HP (2x350 hp) |
|
| PN2023 | 2 310 x 1 986 mm (91" x 78 1/4") | 1 500 mm (59") |
1 000 kW (2x500 kW) / 1 300 HP (2x650 hp) |
1 200 kW (2x600 kW) / 1 600 HP (2x800 hp) |
|
| Secondary range | PN1110 | 1 020 x 820 mm (40 1/4" x 32 1/4") | 600 mm (24") | 160 kW / 200 hp | 200 kW / 250 hp |
Secondary & tertiary |
PN13 | 1 320 mm x 560 mm (52" x22") | 350 mm (14") | 250 kW / 350 hp | 315 kW / 400 hp |
| PN15 | 1 540 x 600 mm (60 5/8" x 24") | 400 mm (16") | 315 kW / 400 hp | 355 kW / 450 hp | |
| PN20 | 2 040 x 700 mm (80 5/16" x 27 9/16") | 400 mm (16") |
500 kW (2x250 kW) / 700 HP (2x350 hp) |
630 kW (2x315 kW) / 800 HP (2x400 hp) |
|
